Fire Proof Silica Polystyrene Color Steel Sandwich Panel Use For
Clean Room Wall Panel

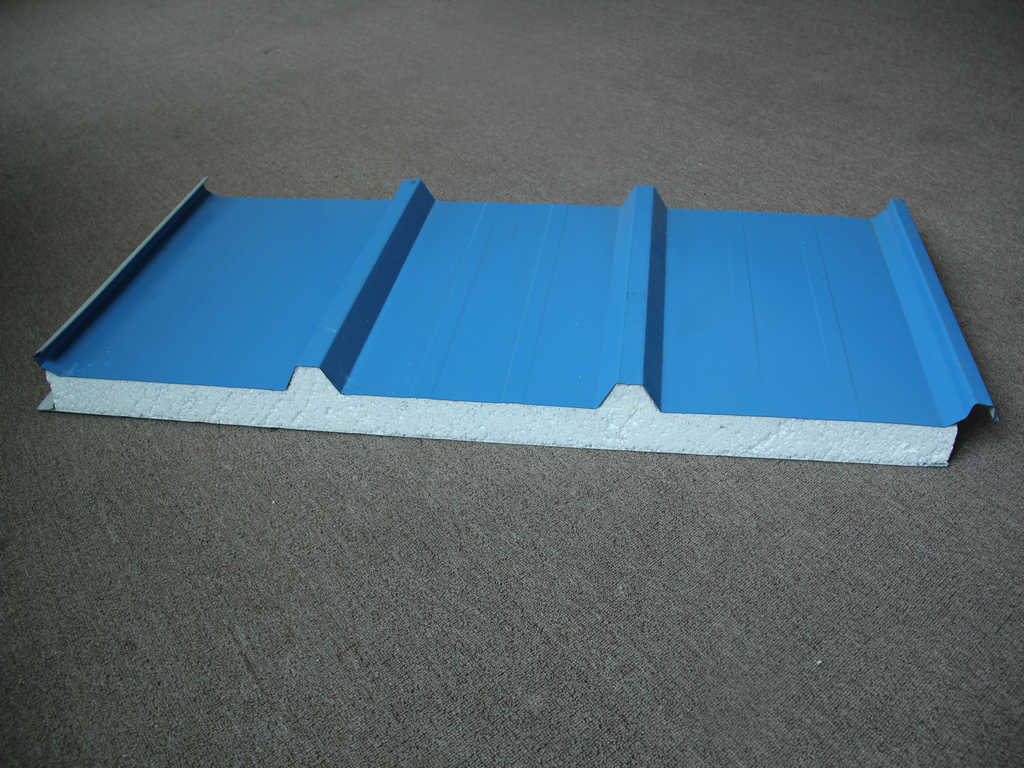

Silica Polystyrene Color Steel Sandwich Panel is a light weight building board made from two outer layers of
steel plates and a inner layer of Silica Polystyrene mixture, which are then heated and pressurized by computer controlled
color steel forming machine. It is an integration of load-bearing,
heat insulation, fireproof, waterproof, and also finishing free. It
is a widely used and reflects the civility of modern construction
sites, especially in temporary housing at construction sites (such
as offices, warehouses, fences, etc.,). It has obvious advantages,
especially in quick installation, assembly and disassembly and
recyclability, which can reduce temporary housing costs.
Features:
1. Good Thermal Insulation, an energy saving material
2. Good Fire Resistance: B1 grade for total panel
3. Special Connection Design: Screw concealed connection
4. Graceful Finish: embossment, small wave, big rib and flat finish
5. Advance Machine: The longest main machine
6. Strict Workshop Management: TMP-5S management system
7. Raw Material: Only quality steel is selected.
8. Strict Quality Control: ISO9001-2008 certification
9. Wide Usage: Used as roof and wall in workshop and warehouse.
EPS Sandwich Panel Specificatoin:
| Panel Thickness | Wall Panel | 50mm, 75mm, 100mm, 125mm, 150mm, 200mm |
| Roof panel | 50mm, 75mm, 100mm, 125mm, 150mm |
| Panel width | Wall Panel | 950mm or 1150mm |
| Roof panel | 960mm or 1050mm |
| Panel Length | Wall / Roof | no limited, but it's better no longer than 12m for transport limit. |
| External steel thickness | | 0.286mm, 0.326mm, 0376mm, 0.426mm, 0.476mm, 0.5mm, 0.6mm, 0.7mm,
0.8mm, 1.0mm |
| EPS foam density | | 40kg/m³, 60kg/m³, 80kg/m³ |
Silica Polystyrene Color Steel Sandwich Panel Applications:
1. Prefabricated House
2. Container house
3. Clean room
4. steel structure warehouse / workshop
5. Hospital
6. Building internal partation
Sandwich Panel Color Sheets
Silica Polystyrene Color Steel Sandwich Panel Packing and Container Loading
DESUMAN COMPANY INFORMATIONS:
1)What is the MOQ of Silica Polystyrene Color Steel Sandwich Panel sandwich panel?
200 square meters could be a trail order, but considering freight
fee, we suggest 20GP as a start, 40HQ is the most economical price.
2) Delivery time
As per order quantity. For EPS sandwich panel our production
capacity is 6000 square meter per day.
3) payment terms
30% T/T deposit and balance should be paid before delivery.
4) If we wanna build a warehouse or house, could you help us do a
budget?
Yes, it is our pleasure, types of end converge offered in one stop
service.
5)Could we visit your factory before place the order?
Yes, welcome to visit our factory in any time.
