Prefabricated Customized Design Steel Structure Warehouse
Prefabricated Warehouse Building
Advantages
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and
noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the
construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which
can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and
water seepage. Meanwhile, it's also in line with the national level
of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and
seismic performance and bears heavy snow loads
Specification
| Items | Specification |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout | PVC |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or
Galvanized. |
Prefabricated Customized Design Steel Structure Warehouse
Steel structure warehouse has features of high fire resistance,
strong corrosion resistance. Steel structure warehouse is mainly
refers to the main bearing component is composed of steel.
Including the steel columns, steel beam, steel structure, steel
roof truss.Each component using welds, bolts or rivets to connect.
The roof and wall can be made of composite panel or veneer.
Galvanized sheet metal can prevent rust and corrosion. The use of
self-tapping screw can make the connection between the plates more
closely, to prevent leakage. You can also use composite panel for
roof and wall. The sandwich is polystyrene, glass fiber, rock wool,
polyurethane. They have good thermal insulation, heat insulation,
fire-retardant. The wall of the steel structure maintenance also
can use brick wall. The cost of a brick wall is higher than
galvanized steel roof and wall.
The usage scale includes large-scale workshop, or warehouse,
supermarkets, entertainment centers and modular steel structure
garage.
Main Materials Photo of Steel Structure Warehouse

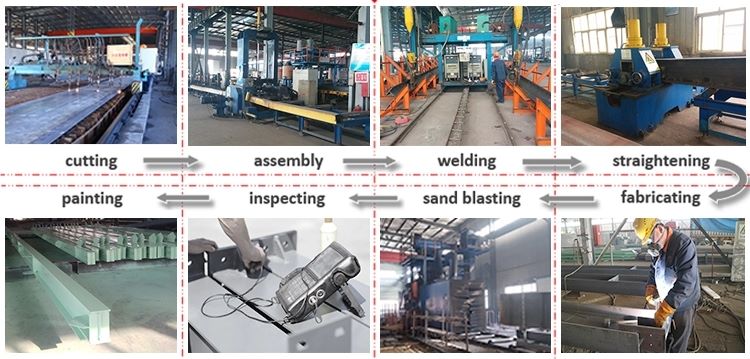

Processing Flows
We have professional welding team, who are well educated and have
welding cerfiticate, most important is that Most of them have over
25 years working experiences.
Steel Structure Warehouse Export Packing and Loading
Flat packed into 40'HQ or separate into 40'OT.

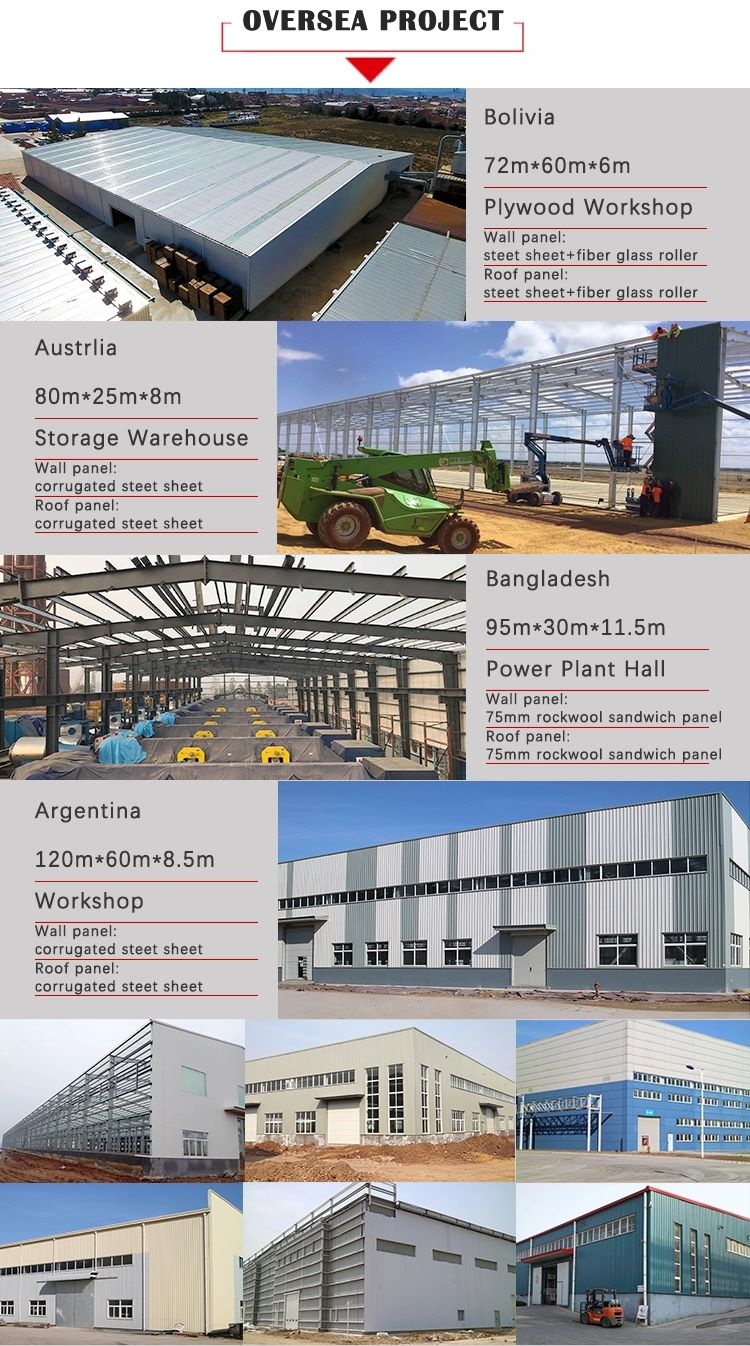

Reference Overseas Project Of Steel Structure Warehouse
Desuman Factory Informations
Q1: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at
any time for inspection. The quality control flow and sales team
will show you our professionalism. Also, you will get best and most
competitive price after visiting us.
Q2: What the quality assurance you provided and how do you control
quality?
A: Established a procedure to check products at all stages of the
manufacturing process - raw materials, in process
materials,validated or tested materials, finished goods, etc. SGS,
BV and other testing are available for us. We could deal with you
by Trade Assurance via Alibaba.
Q3: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same
quality and best quality with the same price. We will do everything
we can to reduce your cost and guarantee you get the best product
that you paid for.
Q4: Can you send engineers or whole team to install my project?
A: Yes, we will send you the detailed installation drawing and
video for free, we can provide the service of installation,
supervision, and training by extra. We can send our professional
technical team to supervise installation on site overseas.
Q5: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the
container loading, but any time during the production time.
Q6: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your
requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla
Structures (X steel) etc., we can design complex industrial
building like office mansion, super marker, auto dealer shop,
shipping mall, 5 stars hotel.
Q7: What is the delivery time?
A: Delivery time depends on order quantities. In general, the
delivery time to nearest seaport in China will be 30 days after
receiving deposit.
Q8: How can you get a quotation for your projects?
A: You can contact us by email, phone, Alibaba TM, WhatsApp, Skype,
Viber and so on 24*7 and you will get reply within 8 hours.
Q9: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers’ team will provide
you the suitable solution according to your requirements.
Proposal drawing, 3D drawing, Materials’ photos, finished projects
photos are available, which will help you understand the
solution we provided deeply.
